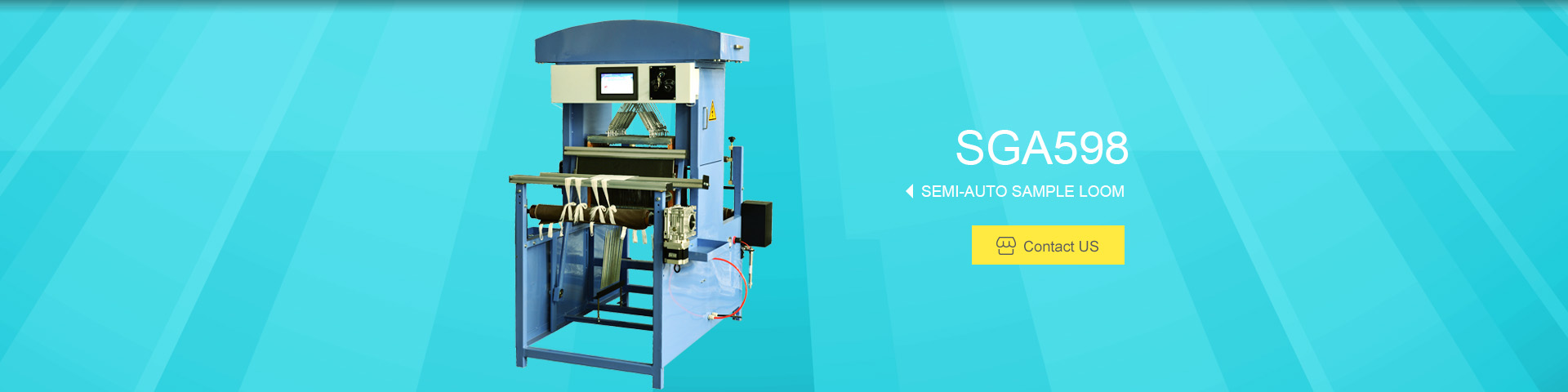

1.This machine is welded integrally by the seamless square steel pipe,with resonable structure and good rigidity. The outer surface is treated by baking finish with good brightness and beautiful appearance.
2.Adopt the pneumatic heald lifting opening unit to avoid the easy wearing shortcoming of traditional pin mechanism. It featuresstable action, low noise and high reliability.
3.PLC control contact screen is adopted for electric system,storing 6 pcs of pattern cads at the same time. 1000 lines reachable for each pattern card.Preserve computer interface to realize the communication with PC and PLC.
TECHNICAL PARAMETER PERFORMANCE INDEX
Width：Reed width 20”
Color selection：manual
No.of heald frame：16（standard）、20（optional）
Take-up：manual or automatic;
Beating-up：manual;
Heald lifting：PLC control,pneumatic opening;
TECHNICAL PARAMETER PERFORMANCE INDEX
Air source control：air source pressure 0.45～0.8Mpa, largest air consumption 200L/min;
Power source：rated power source 220V,freq.50HZ;
Outer line size（mm）：1300×980×1510。
Weight：180KG
Power：1KW
